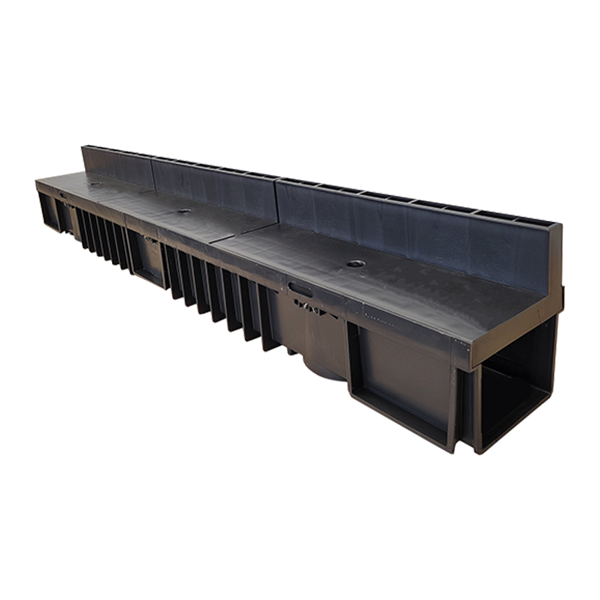

Slot Drain Channel

Slot Drain Channel

Pickup available at  Shop location
Usually ready in 24 hours
Cambridge Street, Castleford WF10 5BL, United Kingdom
Description

Slot Drain Channel is designed for domestic threshold areas and lightweight vehicle traffic, offering a neat, discreet drainage solution.

  • Rated B125 when installed with paving
  • Rated C250 when fully encased in concrete up to top of upstand
  • Channel width: 130mm
  • Channel length: 1000mm
  • Channel depth: 160mm
  • Main body side depth: 105mm
  • Slot upstand height: 55mm
  • Grating secured with 2 bolts
  • 3 bottom outlet points per length
  • 12mm slot openings
  • EN 1433 CE marked
  • Made from 100% recycled polypropylene
  • Flow rate: 4.5 l/s

Suitable for installation with block paving or a concrete surround.
